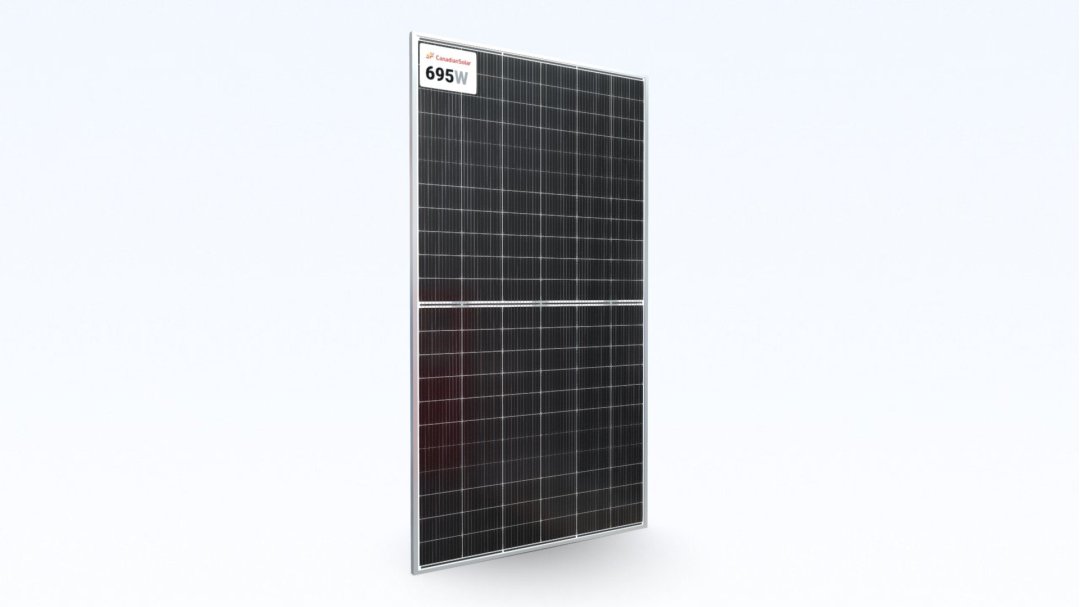

Canadian Solar 695W Solar Panel 132 Cells PERC Bifacial CS7N-TB-AG-695 Commercial 496 panels per Container (Truckload)

Canadian Solar CS7N-TB-AG-695 is a PV module fit for both residential and commercial applications. Canadian Solar engineers made the TOPBiHiKu7 series durable and efficient while minimizing the amount of useful space required for their operation. This panel takes full advantage of the Passivated Emitter Rear Contact (PERC) technology that allows it to capture up to 12% more energy. All thanks to a reflective layer on the back. This design maximizes the number of photons absorbed by solar cells.

The use of half-cut cell technology is an additional perk. The solar cells of CS7N-695TB-AG are half the size of those found in standard panels. Major advantages include reduced power consumption, extended life and enhanced efficiency in low-light conditions. Not surprisingly, the efficiency of this module is quite high – 22.4%. And while conventional panels use only one side to absorb photons, bifacial modules employ both sides at the same time. Thanks to the technology, this model can be up to 30% more efficient. Canadian Solar provides an industry-leading 30-year performance warranty and a 12-year product warranty.

• 132 half-cut PERC cells
• 695 W nameplate capacity
• 22.4% efficiency
• 1500 V DC maximum system voltage
• MC4 connectors
• 12 years of product and 30 years of performance warranty

More power and efficiency

An already high efficiency of 22.4% is further enhanced by PERC technology. By adding a solid PID resistance and special glass lamination on top, the manufacturer ended up with an efficient and very durable model. Under standard test conditions, CS7N-695TB-AG outputs 695 W of power.

Exceptional performance in scorching weather

At high working temperatures, a low temperature coefficient equals increased energy generation. Every 1.8°F over 77°F results in a model's efficiency loss of just -0.29 percent.

High quality standards

Canadian Solar strict manufacturing standards include multiple tests to provide extreme quality assurance. The facilities are highly automated, allowing the company to maintain high standards and keep the level of warranty claims very low.

Low degradation for increased lifespan

The amount of power output loss experienced by these panels during the first year of operation will not exceed 1%. The average yearly power drop from the second to the 30th year will not surpass 0.40%. After 30 years, the module will still produce more than 87.4% of its initial output.

Improved frame design

CS7N-695TB-AG design makes it suitable for both residential and business rooftops. The use of a strong 1.38" frame composed of aluminum alloy boosts durability and strength. The model can withstand a significant snow load of up to 5400 Pa. The panel's back can withstand 2400 Pa, guaranteeing that your system will resist even the fiercest winds.

Size

93.9" x 51.3" x 1.38"

Weight

83.6 lb
