Hybrid Inverters

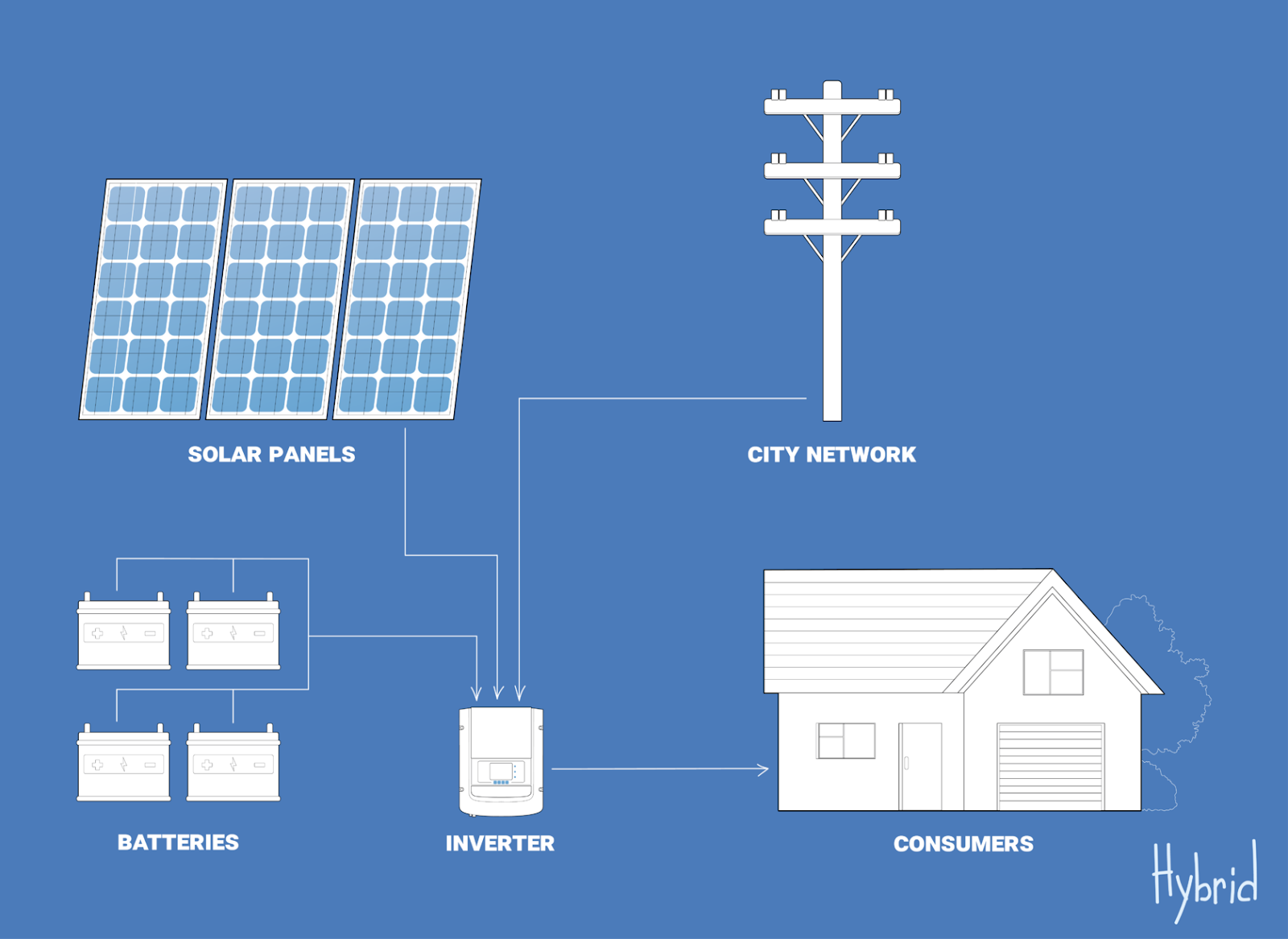

A solar hybrid inverter manages power from three sources in one unit: the solar array, a battery, and the utility grid. Unlike a standard grid-tie inverter, it adds a built-in battery charge controller and an automatic transfer switch, so a connected battery keeps power flowing when the grid goes down.

This article compares hybrid inverters against string and off-grid inverters, breaks down AC-coupled and DC-coupled designs, and walks through choosing between a retrofit and a new build. It also covers the specs worth checking before buying and closes with practical recommendations for matching a unit to a project.

Hybrid vs String vs Off-Grid Inverters: Where the Power Goes During an Outage

Grid-tie inverters, sometimes called string inverters, convert solar power for immediate use or export to the utility grid. They carry no battery charge controller, so when the grid drops, an anti-islanding safety feature shuts the entire system down, panels included.

Off-grid inverters sit at the opposite end. They aren't connected to the utility at all and run entirely on a battery bank charged by solar, sized to cover every load without support from the grid. That independence adds cost and requires careful battery sizing for cloudy stretches.

A hybrid solar inverter bridges the two. It stays connected to the grid for daily use and net metering, but its transfer switch senses an outage and islands the system within milliseconds, switching to battery power automatically. Some hybrid inverters also support full off-grid operation with no utility connection at all.

AC-Coupled vs DC-Coupled Hybrid Inverters

Hybrid inverters manage the connection between panels and battery in one of two ways: AC-coupled or DC-coupled. The difference lies in how many times power converts between direct and alternating current before it reaches storage, and that affects both efficiency and installation cost.

DC-coupled units tie the battery directly into the inverter's DC side, converting solar power to storage through a single DC-to-DC step. That path typically reaches 92% to 97% round-trip efficiency and works best when the whole system is designed and installed together.

AC-coupled units add the battery through its own inverter, joined to the system on the AC side. The extra conversion step drops round-trip efficiency to about 85% to 90%, though it makes adding a battery to an existing solar array simpler than rewiring the DC side.

Neither design outperforms the other outright. A new build gains more from a DC-coupled hybrid inverter's higher efficiency, while a homeowner adding storage to solar panels installed years ago typically saves money and labor with an AC-coupled retrofit.

Choosing Between a Retrofit and a New Hybrid Inverter Setup

The right hybrid inverter setup depends on what's already on the roof and what backup coverage a household needs. A few questions narrow the decision faster than comparing spec sheets line by line.

Most homes run single-phase power, and most residential hybrid solar inverters are built for it. Larger homes and light commercial sites wired for three-phase power need a hybrid inverter rated for three-phase use; a single-phase unit simply cannot connect to that setup.

Key Takeaways for Choosing a Hybrid Inverter

The best hybrid inverter for a project is rarely the one with the highest efficiency number on a spec sheet. The clearer signal comes from what's already installed and what an outage needs to cover.

A retrofit favors AC-coupled simplicity; a new build rewards DC-coupled efficiency. Either way, matching the inverter's continuous output and battery compatibility to the actual site avoids paying for capacity, or backup scope, that never gets used.

A1 SolarStore lists coupling type, continuous output, battery compatibility, and certification details on each hybrid inverter's product page, so it's straightforward to compare options against a specific project's roof, battery, and backup goals before ordering.
