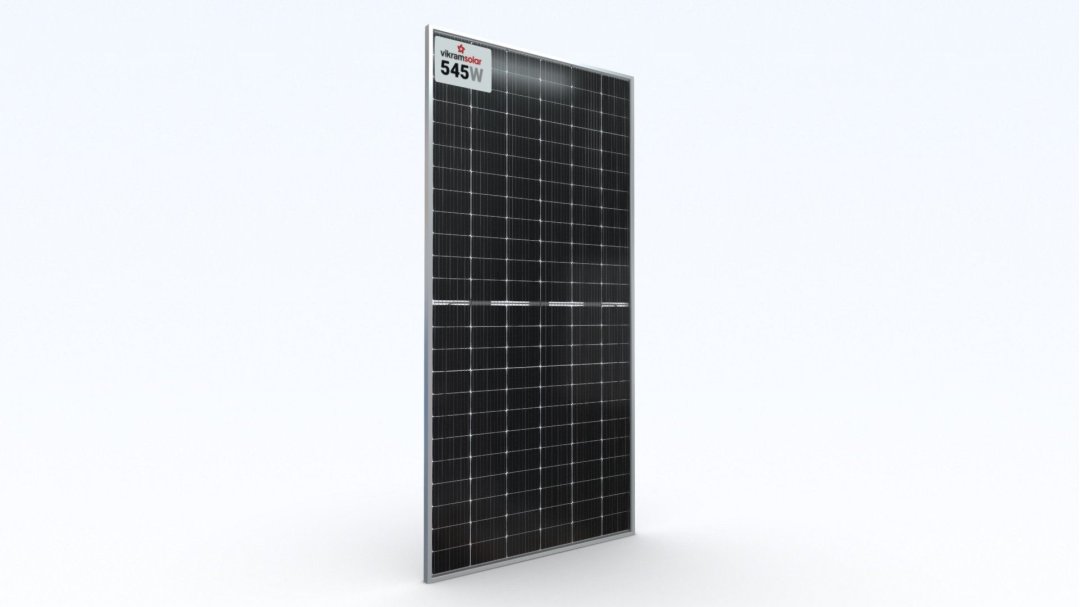

Vikram 545W Solar Panels 144 Cells Bifacial 545-PARADEA-VSMDH.72.AAA.05 Container 720 panels

VSMDH.72.AAA.05 is part of the PARADEA Series — one of the most recent made by Vikram Solar. These panels employ cutting-edge technologies to achieve superior efficiency and reliability. This panel takes full advantage of the Passivated Emitter Rear Contact (PERC) technology that allows it to capture up to 12% more energy. All thanks to a reflective layer on the back. This design maximizes the number of photons absorbed by solar cells.

To further boost the performance, Vikram Solar employs half-cut cell technology. Each of the panel’s 144 cells is only half the size of a traditional solar cell. This grants VSMDH.72.AAA.05 lower resistive losses and better shade tolerance. As a result, the panel achieves an impressive efficiency of 21.1%. And while conventional panels use only one side to absorb photons, bifacial modules employ both sides at the same time. Thanks to the technology, this model can be up to 30% more efficient. Vikram Solar paid as much attention to durability as they did to performance. VSMDH.72.AAA.05 is guaranteed to retain at least 83.5% of output after 30 years. Product warranty for this panel lasts 12 years.

• 144 half-cut PERC cells
• 545 W nameplate capacity
• 21.1% efficiency
• 1500 V DC maximum system voltage
• Stabuli EVO MC4 connectors
• 12 years of product and 30 years of performance warranty

Higher efficiency of up to 21.1%

The highest power output is guaranteed by Vikram Solar VSMDH.72.AAA.05 with an efficiency of up to 21.1%. Such outstanding performance is the product of PERC technology and an effective antireflective coating. This is notably above average, which will translate into significant additional savings over the course of operation.

Keeping the cool in high temperatures

VSMDH.72.AAA.05 manages to stay efficient even at high temperatures. For every 1.8°F above 77°F, it loses just -0.35% in efficiency, allowing you to make the most of the sunniest hours.

Quality and reliability

VSMDH.72.AAA.05 receives multiple quality checks throughout the manufacturing process and is subject to stringent quality and reliability testing. The manufacturing facilities are highly automated, eliminating the risk of human error. Vikram Solar is dedicated to quality, safety and reliability to ensure you get the very best.

Low degradation for increased longevity

In the first year of service, these panels will lose no more than 2% of their power output. The average yearly power drop from the second to the 30th year will be no more than 0.50%. After 30 years, the modules will retain more than 83.5% of their initial output.

A panel that can handle hail, wind and snow

The 1.18" frame built of anodized aluminum and a layer of protective tempered glass make this module weather-resistant. The front side of the modules can withstand a 5400 Pa load, whereas the back side can withstand a 2400 Pa load.

Size

89.53" x 44.65" x 1.18"

Weight

73.6 lb
