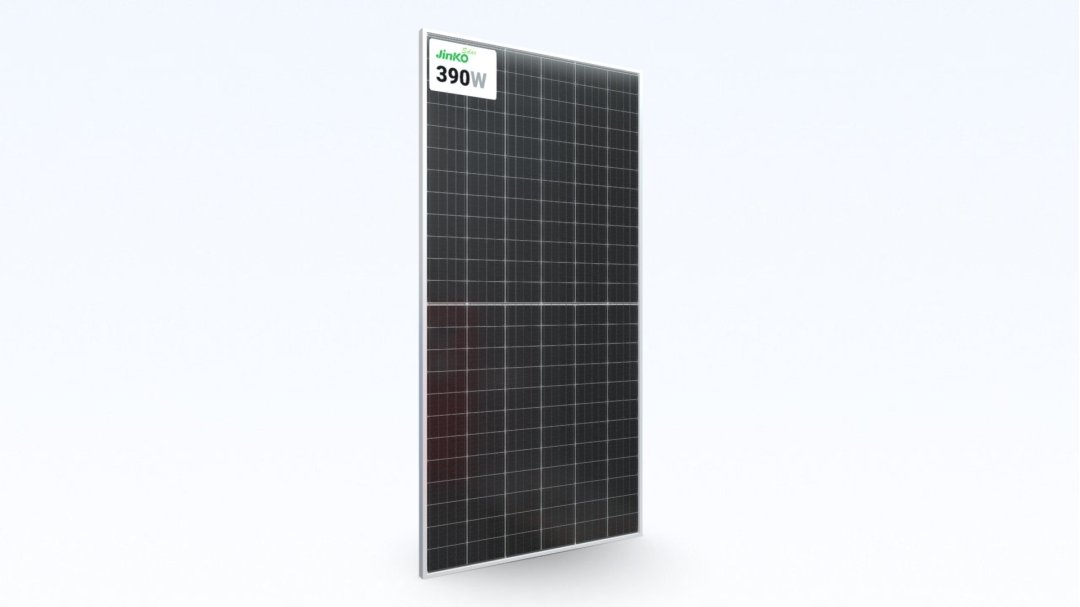

Jinko Solar 390W Solar Panel 144 Cells 390m72hlv Wholesale 26 panels per pallet (min 2 pallets)

390m72hlv is a model that uses a number of technologies to bring durability and performance to the next level. This panel takes full advantage of the Passivated Emitter Rear Contact (PERC) technology that allows it to capture up to 12% more energy. All thanks to a reflective layer on the back. This design maximizes the number of photons absorbed by solar cells.

Half-cut cell technology adds a few more percent to the overall performance, making this model a great example of efficiency. Jinko made solar cells in 390m72hlv two times smaller than the standard size, thus reducing power loss and improving low-light behavior. Not surprisingly, the efficiency of this module is quite high – 19.38%. Jinko paid as much attention to durability as they did to performance. 390m72hlv is guaranteed to retain at least 83.1% of output after 25 years. Product warranty for this panel lasts 12 years.

• 390 W power output
• 144 half-cut PERC cells
• 19.38% efficiency
• 1500 V DC maximum system voltage
• IP67 connectors
• 12-year product and 25-year performance warranties

Increased efficiency of up to 19.38%

390m72hlv ensures maximum power production. 19.38 percent module efficiency is achieved using PERC technology and a powerful antireflective coating. This is much greater than the norm, resulting in significant additional savings throughout the years of operation.

Keeping the cool in high temperatures

390m72hlv manages to stay efficient even at high temperatures. For every 1.8°F above 77°F, it loses just -0.35% in efficiency, allowing you to make the most of the sunniest hours.

High quality standards

Multiple tests are part of the Jinko tight production requirements, which offer the highest level of quality assurance. Because of the facilities' high degree of automation, the business is able to uphold strict standards and minimize the number of warranty claims to an absolute minimum.

Low degradation for a longer lifespan

These panels will lose no more than 2.5% of their power output in the first year of service. From the 2nd year to the 25th year, the average annual power decline will be no more than 0.60%. The module retains over 83.1% of its original output after 25 years. Guaranteed by Jinko.

Certified for the most challenging environmental conditions

390m72hlv is resistant to PID, salt, acid and ammonia. It can also withstand up to 5400 Pa mechanical load on the front and 2400 Pa on the back. Such robustness is mainly due to the 1.57" thick anodized aluminum frame and a layer of protective glass.

Size

79.06" x 39.45" x 1.57"

Weight

49.6 lb
